CRACK SEALING PRODUCTS

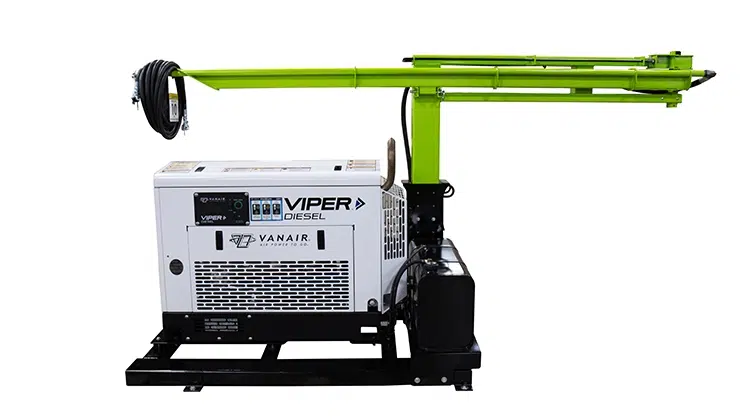

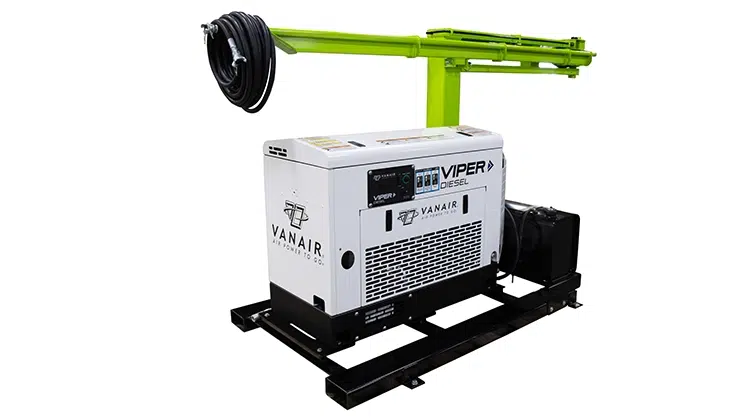

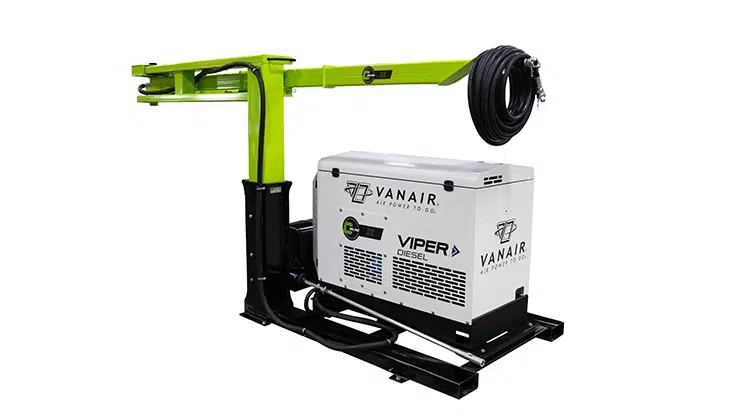

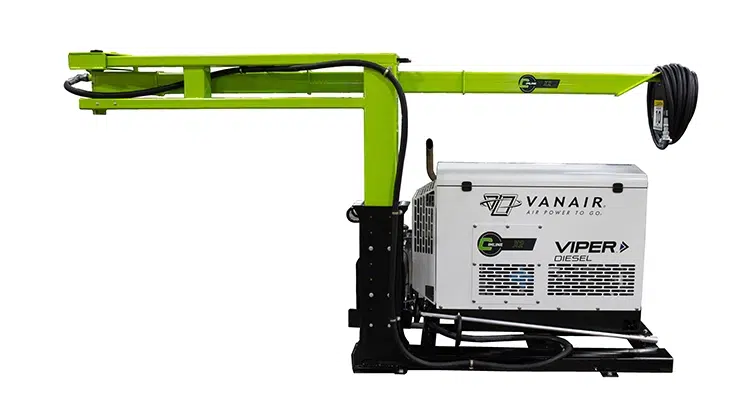

X2™ Carry-on Compressor
Benefits:
- Makes complex mobile roadwork safe and easy
- Prep and crack seal using a single truck utilization by leaving the hitch available for towing a crack seal unit
- Easy installation ensures you are up and running in minutes
Featuring:
- Over the cab design keeps the operator safely forward and in the driver’s line of sight
- Produces 125 psi at the end of the wand ensuring a high performing tool
- Capable of powering air hammers and drills for additional convenience
- Forklift truck and mount ready means portability and fast installation
- Easy to use quick release pivot and adjustable boom height mechanisms
SPECIFICATIONS
| Compressor Engine: | Kubota Diesel Tier 4 liquid cooled 24.8 HP |
| Fuel Capacity: | 18 Gallons US Diesel |
| Compressor Type: | Oil Flooded Rotary Screw |
| Compressor Rated Volume: | 80 CFM |
| Compressor Operating Pressure: | 110 PSI |
| Air Service Connection: | 3/4 Inch NPT With Twist Lock Connectors |
| Hose Provided: | 50 Ft, 1/2 Inch, 300PSI Abrasion Resistant |
| Inforcer Cold Air Lance Construction: | 5 Lb., 60 Inch Aluminum With Dead Man Trigger |
| Inforcer Cold Air Lance Force: | 14 Lbs Thrust, 125 PSI At The Wand Tip |
| Maximum Operating Altitude: | 5000 Ft, Call For Applications Above 5000 Ft |
| Boom Reach From Front Of Frame: | 165 Inches Frame Front To Boom End |
| Dimensions Base Frame Only: | 62 x 44 x 60 Inches (LxWxH) |
| Dimensions For Shipping: | 128 x 44 x 60 Inches Folded (LxWxH) |
| Shipping Weight: | 1000 Lbs. |
| Engine Warranty: | 2 Years Limited |
| Compressor Warranty: | 2 Years Limited |
| Frame and Components Warranty: | 1 Year Limited |
Due to continuous improvement, specifications are subject to change without notice.
