Pothole Patching Products

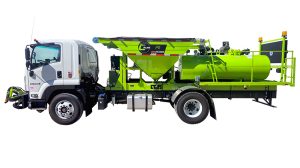

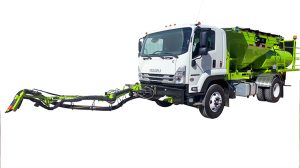

P5 One-Person Patcher with DuraPatcher Technology™

Benefits:

  • Safe and simple pothole patching with a one-person crew from the comfort of a cab
  • Maximizes your budget by never having to patch the same pothole twice
  • Faster and simpler patching process that limits public disruption

Featuring:

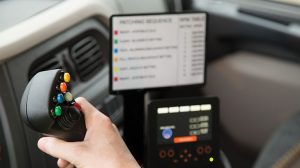

  • Intuitive joystick controls allow operators to learn quickly as well as provide total comfort

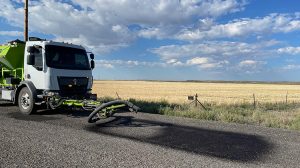

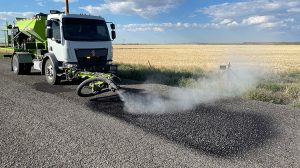

  • Unique, 3-section boom and nozzle are easily maneuvered for ultimate accuracy
  • Pressurized 300-gallon emulsion tank with electric blanket heating allows you to be ready to patch first thing in the morning

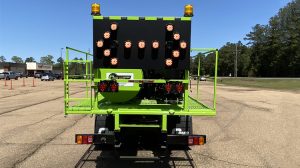

  • Large directional arrow board and dual strobe lights increase safety
  • Heated emulsion tank provides enough product to apply over 10 tons of patch material

Specifications

Due to continuous improvement, specifications are subject to change without notice.

Emulsion Capacity: 300 gallons

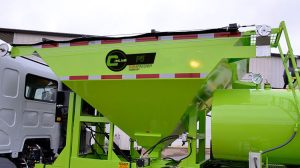

Aggregate Capacity: 5 yards

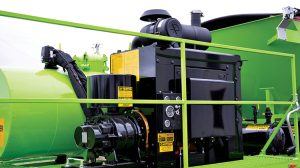

Engine: 74HP IT4 John Deere Diesel
Heating Method (overnight): Electric Blanket
Heat Rating: 2 x 1500 Watts
Tank Insulation: R 15
Blower: 450 CFM at 1500 RPM, 10 PSI
Clean Out: 15 gallons

Fuel Capacity: 18 gallons
Construction: 10” channel main frame
Drain Valve: 3”
GVW: 33,000 lbs.
Chassis: Kenworth K370 or Equivalent
Chassis Transmission: Allison 2500 6 Speed
Axles: Front- 12,000 lb. I Beam
Rear: 21,000 lb., 5.57 Axle Ratio

>
